Images for Reference Testing

This is a more or less uncurated list of figures which are used for reference testing. They might be interesting but they are most probably not.

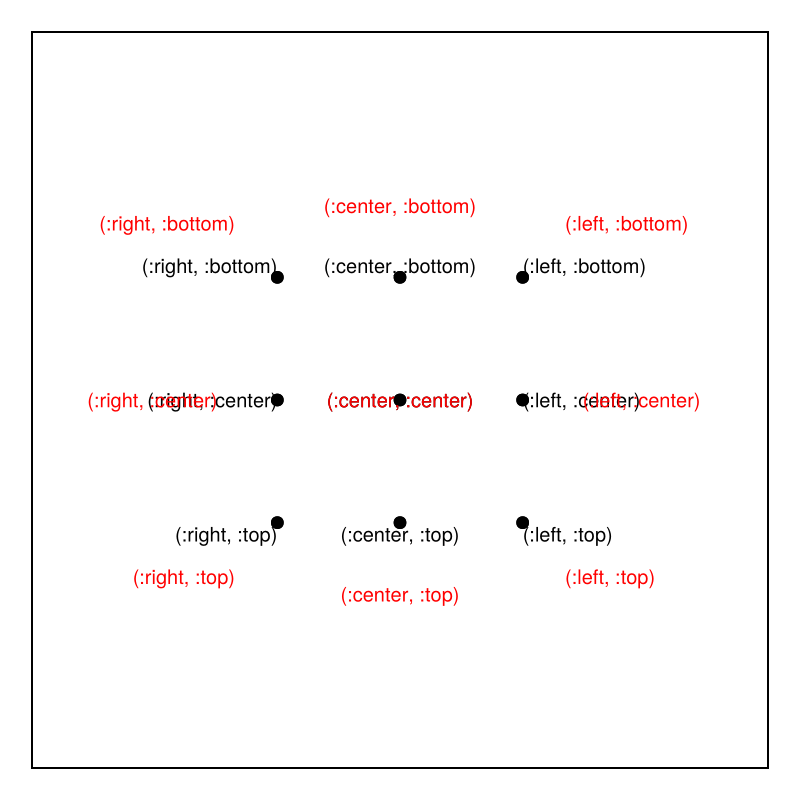

Test different nlabels_align modes

using Graphs, GraphMakie, CairoMakie, NetworkLayout
import DataStructures: DefaultDict

g = SimpleGraph(9)
nlabels_align = [
    (:right, :bottom),
    (:center, :bottom),
    (:left, :bottom),
    (:right, :center),
    (:center, :center),
    (:left, :center),
    (:right, :top),
    (:center, :top),
    (:left, :top),
]

nlabels = repr.(nlabels_align)
nlabels_fontsize = 10

fig, ax, p = graphplot(g; layout = SquareGrid(), nlabels, nlabels_align, nlabels_fontsize)
graphplot!(
    g; layout = SquareGrid(), nlabels, nlabels_align, nlabels_distance = 30,
    nlabels_color = :red, nlabels_fontsize
)
hidedecorations!(ax); xlims!(-2, 4); ylims!(-4, 2)
fig
Example block output

change the align

pop!(ax.scene.plots) # remove red plot
p[:nlabels_distance] = 10

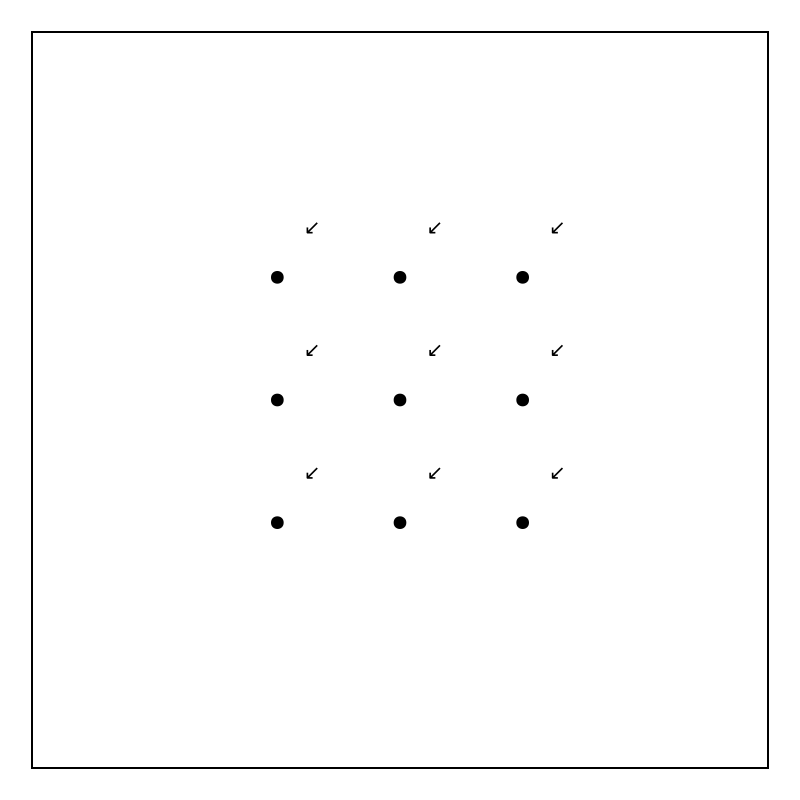

p[:nlabels_align][] = [(:left, :bottom) for i in 1:nv(g)]
p[:nlabels][] = ["↙" for i in 1:nv(g)]
p[:nlabels_offset][] = Point2(0.1, 0.2)
fig
Example block output

variable offsets

p[:nlabels_distance] = 0
p[:nlabels_align][] = [(:center, :center) for i in 1:nv(g)]
p[:nlabels][] = ["×" for i in 1:nv(g)]
p[:nlabels_color][] = :red

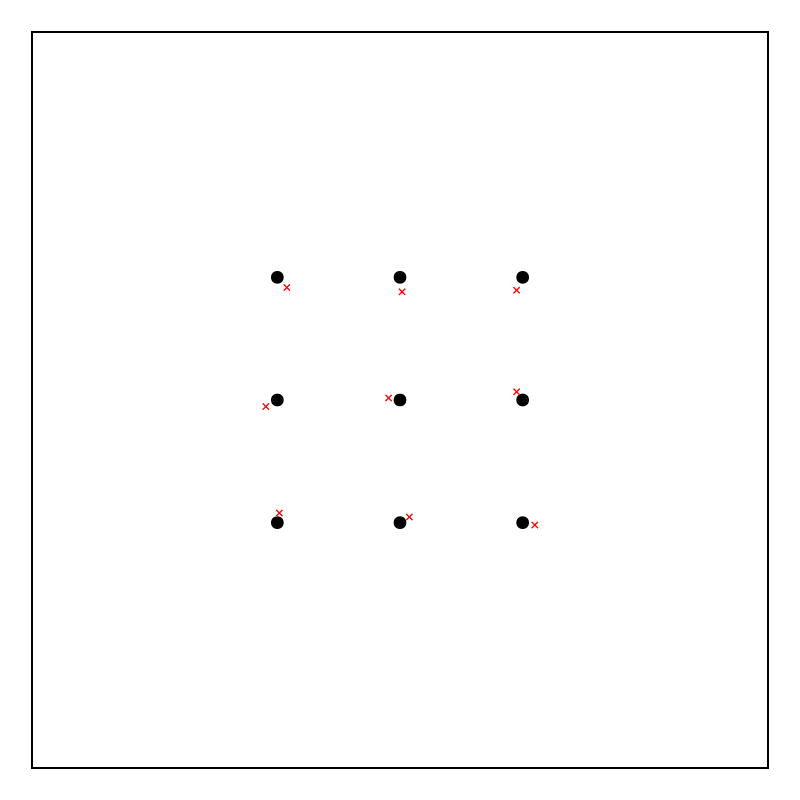

p[:nlabels_offset][] = [Point2(0.1 * cos(-2π / 9 * i), 0.1 * sin(-2π / 9 * i)) for i in 1:nv(g)]
fig
Example block output

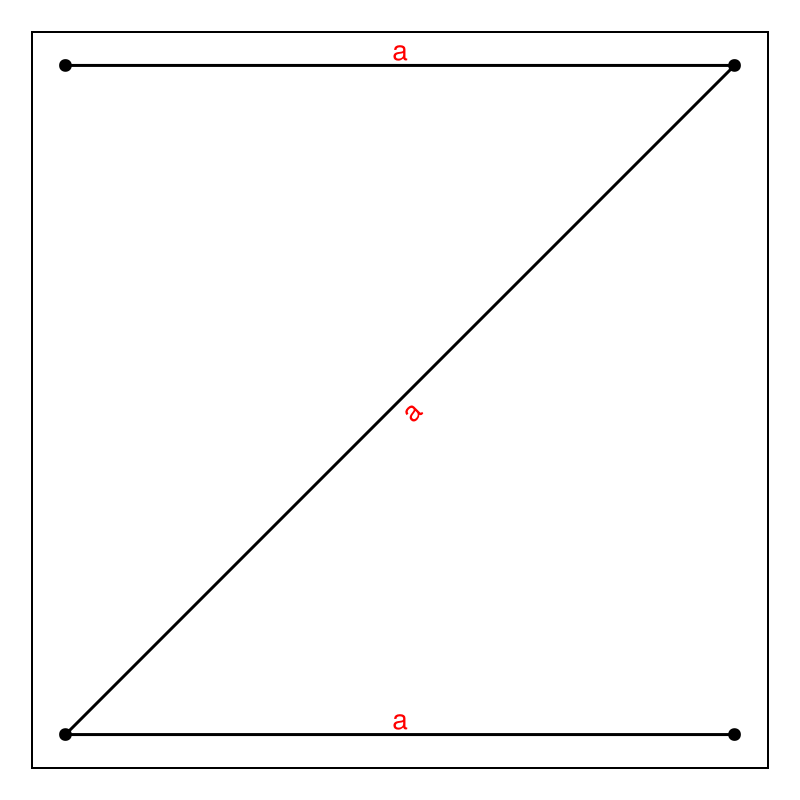

Edge label placement

g = path_graph(4)
elabels = ["a" for i in 1:ne(g)]
elabels_align = (:center, :center)
fig, ax, p = graphplot(
    g; layout = SquareGrid(), elabels, elabels_align,
    elabels_color = :red
)
hidedecorations!(ax)
fig
Example block output

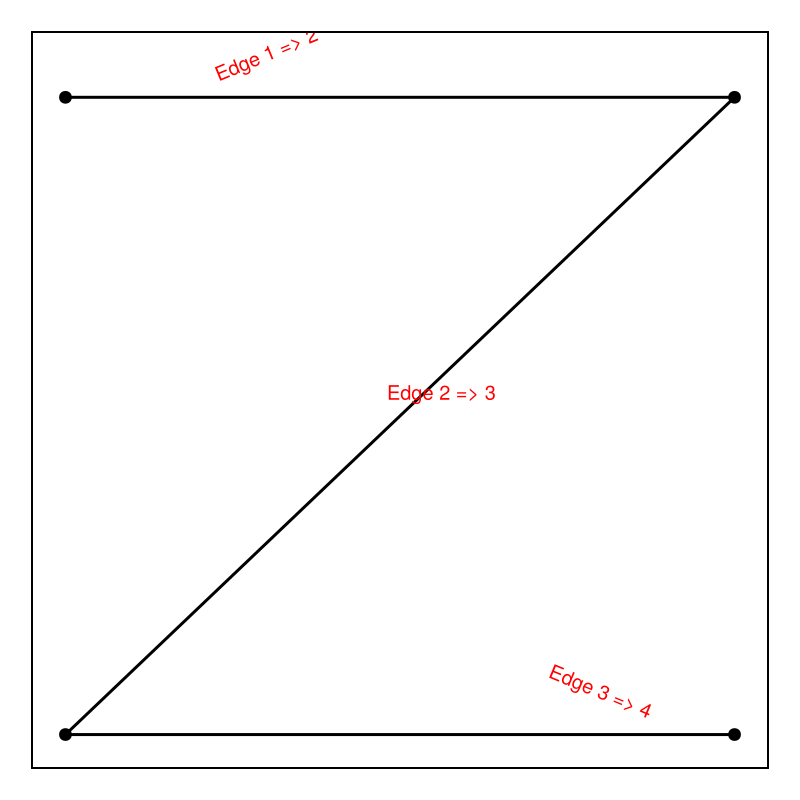

change the positioning of the edge labels

p[:elabels][] = repr.(edges(g))
p[:elabels_shift][] = [0.25, 0.5, 0.75]
p[:elabels_rotation][] = [π / 8, 0, -π / 8]
p[:elabels_offset][] = Point2(0.05, 0.05)
p[:elabels_fontsize][] = 10
autolimits!(ax)
fig
Example block output

Changes of node positions

edge and node labels follow graph movement

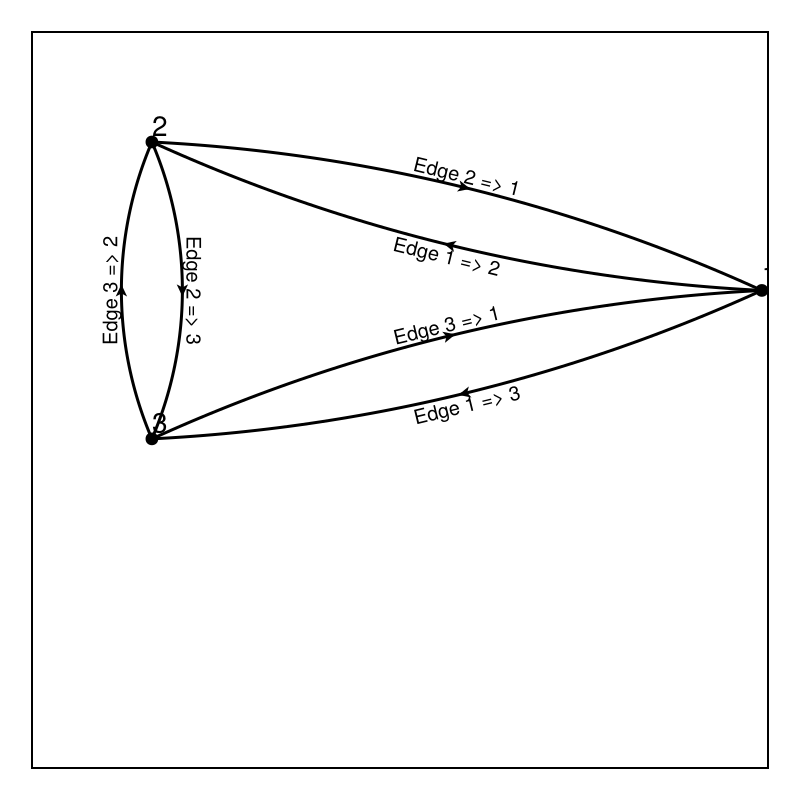

g = complete_digraph(3)

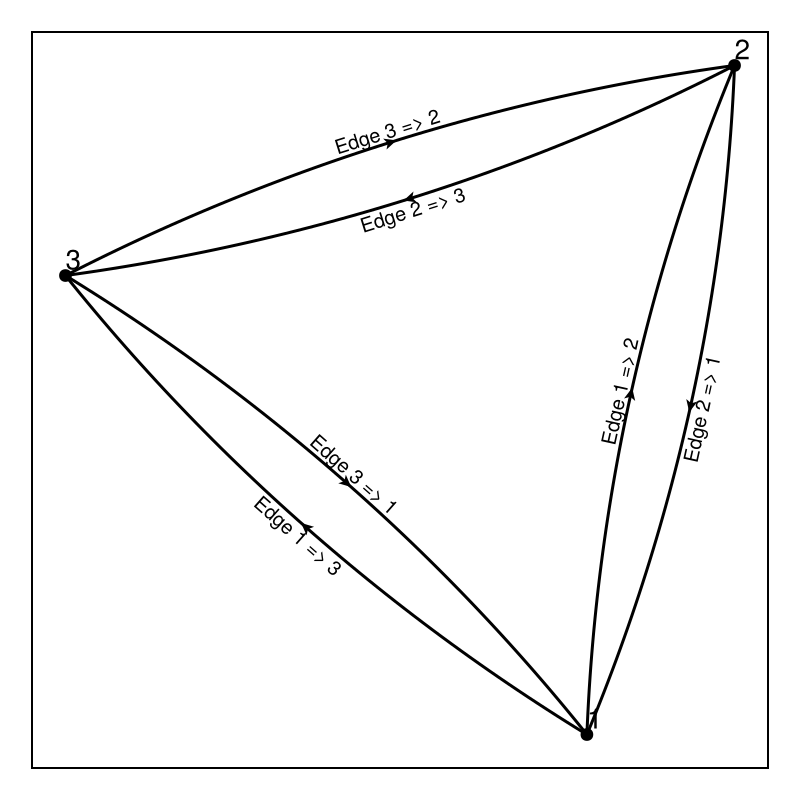

elabels = repr.(edges(g))
nlabels = repr.(1:nv(g))
fig, ax, p = graphplot(g; elabels, nlabels, elabels_fontsize = 10)
hidedecorations!(ax)
fig

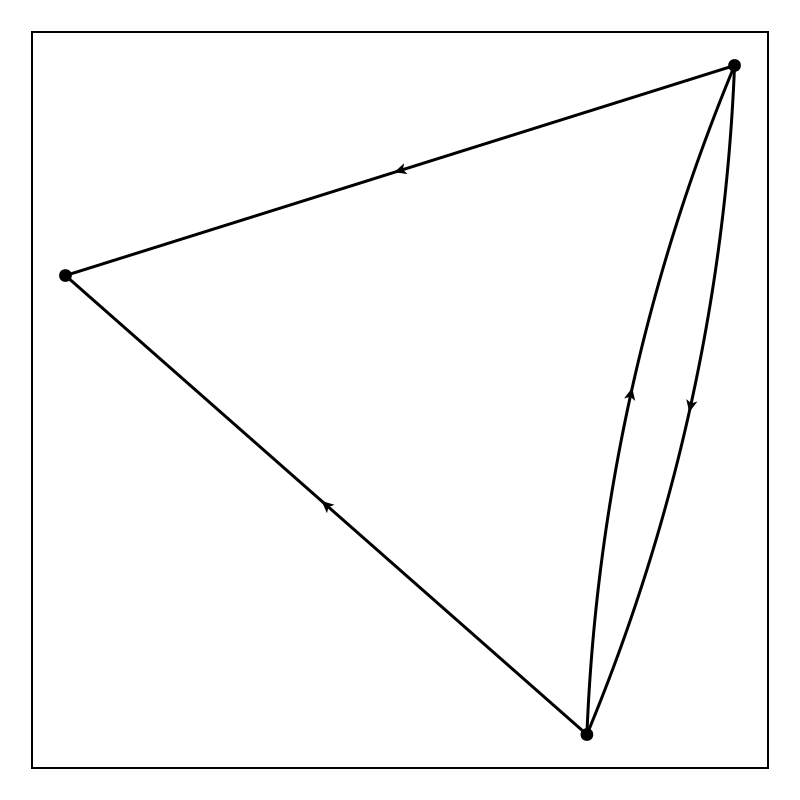

Example block output
limits!(ax, ax.finallimits[]) # freeze the limits

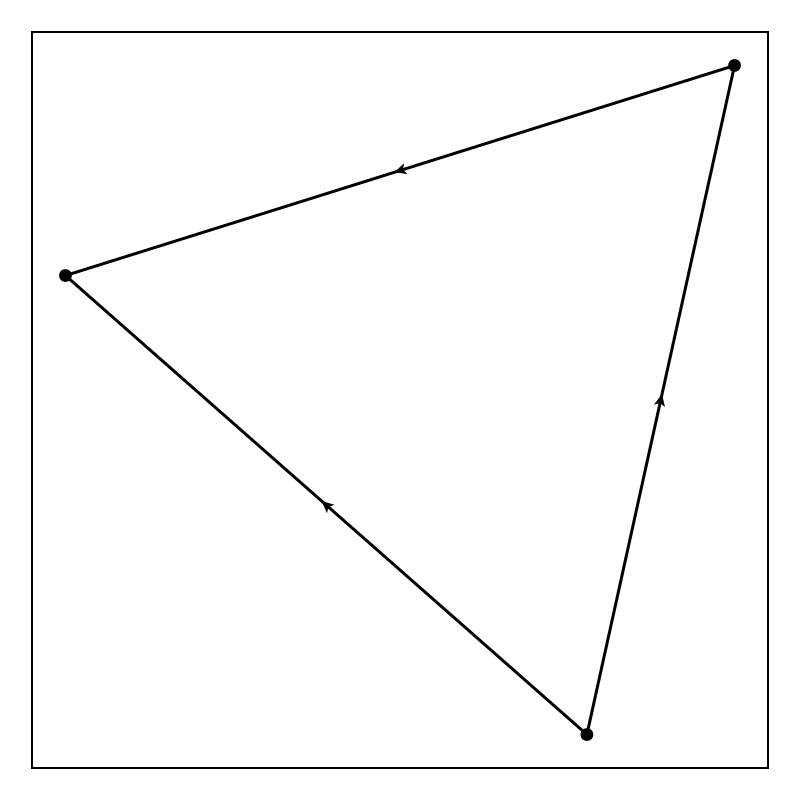

p[:node_pos][] = Point2f.([(1.0, -0.5), (-1.0, 0.0), (-1.0, -1.0)])
hidedecorations!(ax)
fig
Example block output

Change of the underlying graph

gn = Observable(SimpleDiGraph(3))
fig, ax, p = graphplot(gn)
hidedecorations!(ax)
fig

add_edge!(gn[], 1, 2)
add_edge!(gn[], 1, 3)
add_edge!(gn[], 2, 3)
notify(gn)
autolimits!(ax)
fig
Example block output

add another edge

add_edge!(gn[], 2, 1)
notify(gn)
fig
Example block output

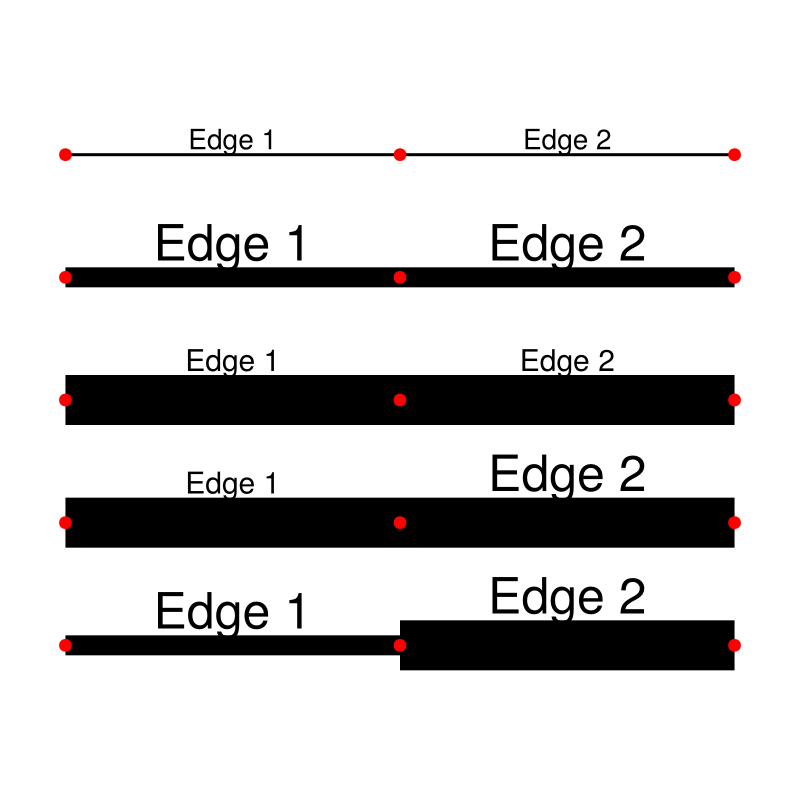

Different combinations of edge width and edgelabel distance

g = path_graph(3)
layout(y) = Point2f.([(0, -y), (1, -y), (2, -y)])
elabels = ["Edge 1", "Edge 2"]
node_color = :red

fig, ax, p = graphplot(g; layout = layout(0), elabels, node_color)
graphplot!(g; layout = layout(1), elabels, node_color, edge_width = 10, elabels_fontsize = 25)
graphplot!(g; layout = layout(2), elabels, node_color, edge_width = 25, elabels_fontsize = 15)
graphplot!(g; layout = layout(3), elabels, node_color, edge_width = 25, elabels_fontsize = [15, 25])
graphplot!(g; layout = layout(4), elabels, node_color, edge_width = [10, 25], elabels_fontsize = 25)
autolimits!(ax); hidedecorations!(ax); hidespines!(ax); ylims!(-5, 1)
fig
Example block output

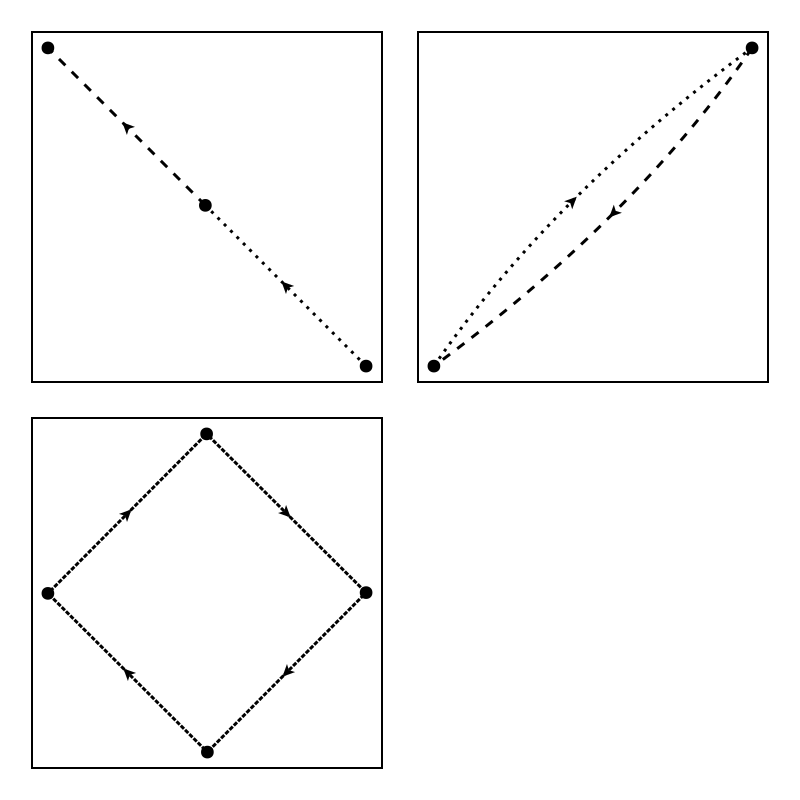

Different linestyles per edge

fig = Figure()
graphplot(
    fig[1, 1],
    DiGraph([Edge(1 => 2), Edge(2 => 3)]),
    edge_linestyle = [:dot, :dash],
)
hidedecorations!(current_axis())

graphplot(
    fig[1, 2],
    DiGraph([Edge(1 => 2), Edge(2 => 1)]),
    edge_linestyle = [:dot, :dash],
)
hidedecorations!(current_axis())

graphplot(
    fig[2, 1], layout = Stress(),
    DiGraph([Edge(1 => 2), Edge(2 => 3), Edge(3 => 4), Edge(4 => 1)]),
    edge_linestyle = Linestyle([0.5, 1.0, 1.5, 2.5]),
)
hidedecorations!(current_axis())
fig
fig
Example block output

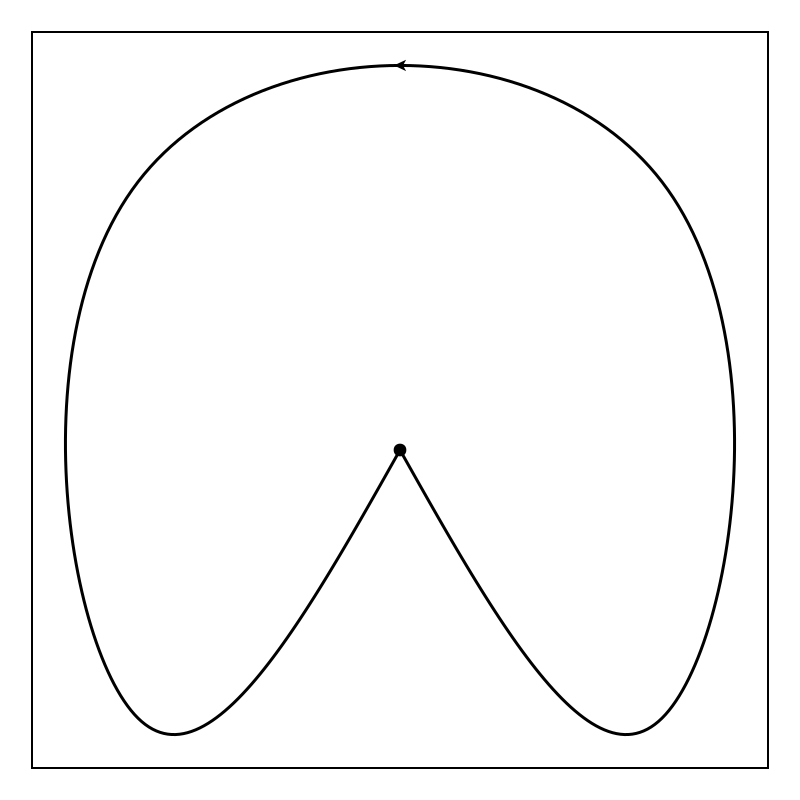

Self loop with waypoints

g1 = SimpleDiGraph(1)
add_edge!(g1, 1, 1) #add self loop

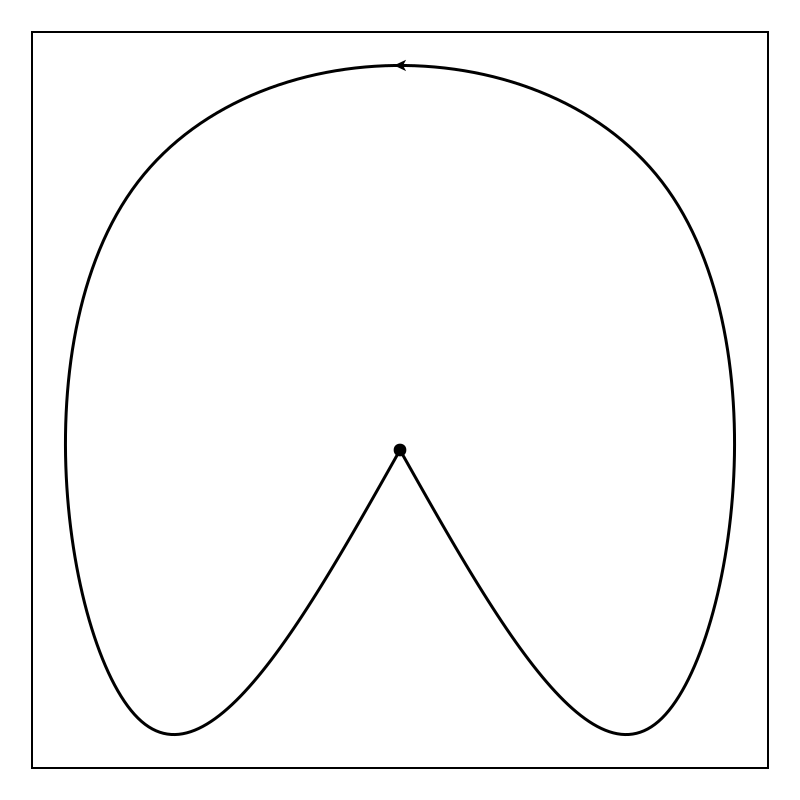

fig, ax, p = graphplot(g1, layout = [(0, 0)], waypoints = [[(1, -1), (1, 1), (-1, 1), (-1, -1)]])
hidedecorations!(ax)
fig
Example block output

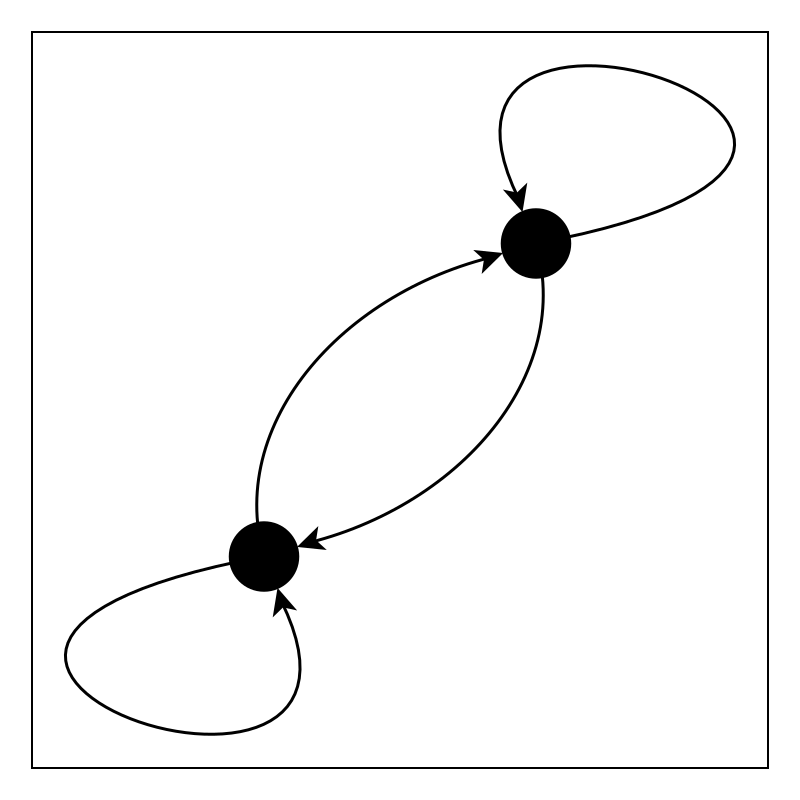

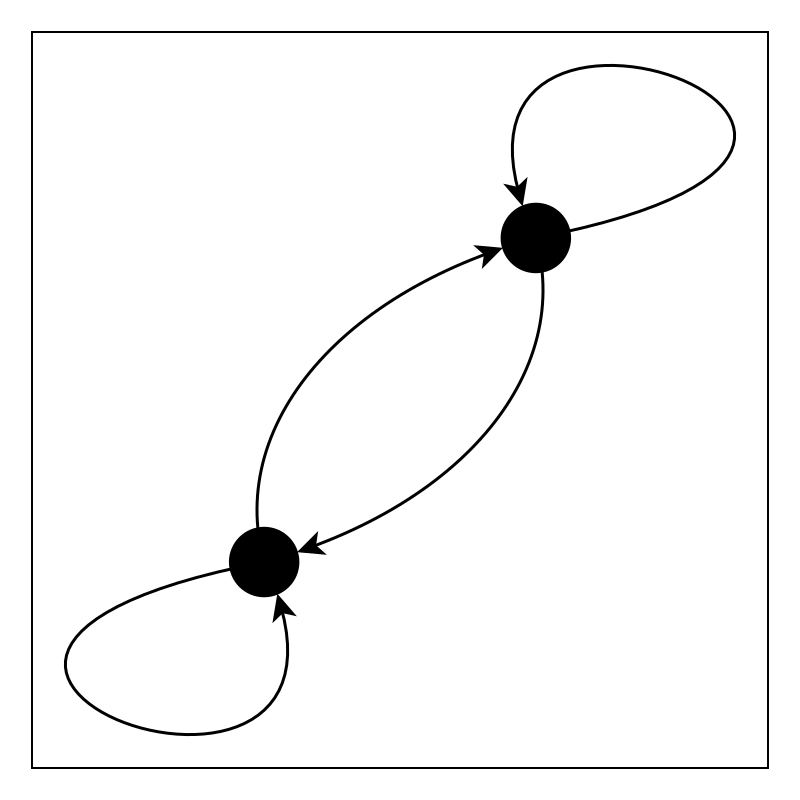

Shift arrows to nodes

fig, ax, p = graphplot(SimpleDiGraph(ones(2, 2)), node_size = 50, arrow_size = 20, curve_distance = 0.5, arrow_shift = :end)
hidedecorations!(ax)
fig
Example block output

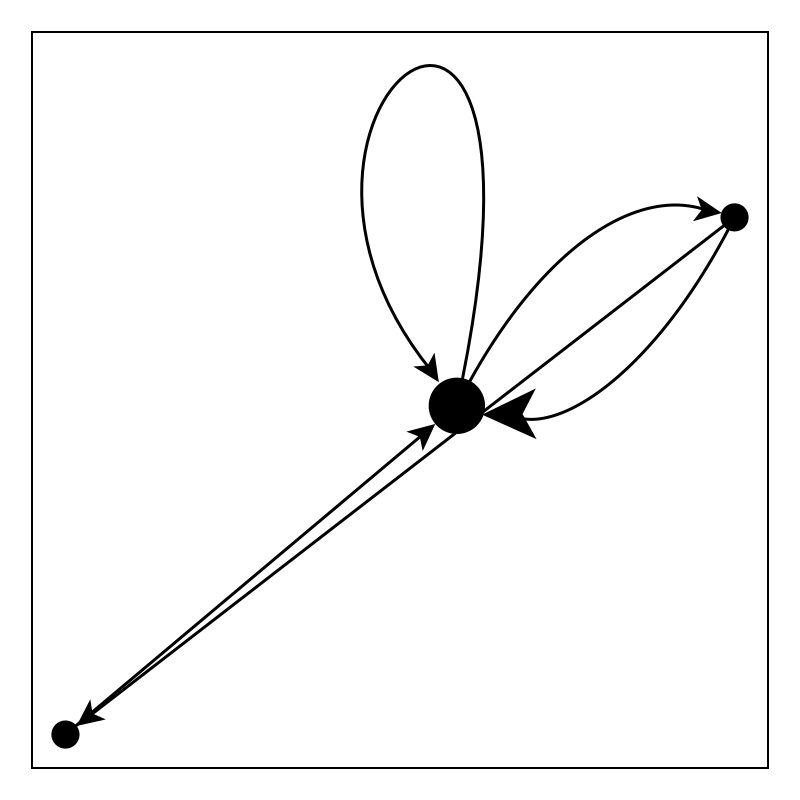

update shifts

g = SimpleDiGraph(3)
add_edge!(g, 1, 1); add_edge!(g, 1, 2); add_edge!(g, 2, 1); add_edge!(g, 2, 3); add_edge!(g, 3, 1);

test update of node and arrow size, and node position

fig, ax, p = graphplot(
    g; arrow_shift = :end,
    node_size = [20 for _ in 1:nv(g)],
    arrow_size = [20 for _ in 1:ne(g)]
)
hidedecorations!(ax)
fig

p.node_size[][1] = 40
p.node_size[] = p.node_size[]
fig

p.arrow_size[][3] = 40
p.arrow_size[] = p.arrow_size[]
fig

p.node_pos[][1] = (0, 0)
p.node_pos[] = p.node_pos[]
fig
Example block output

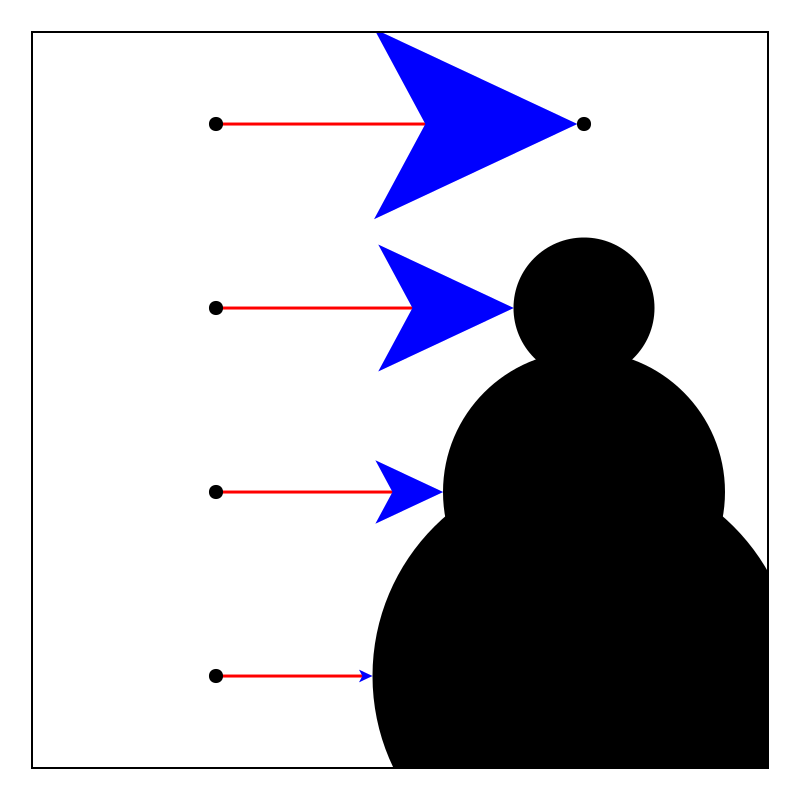

test large nodes

using GraphMakie: SquareGrid
g = SimpleDiGraph(8)
add_edge!(g, 1, 2)
add_edge!(g, 3, 4)
add_edge!(g, 5, 6)
add_edge!(g, 7, 8)

fig, ax, p = graphplot(
    g; arrow_shift = :end, layout = SquareGrid(cols = 2),
    node_size = [10, 10, 10, 100, 10, 200, 10, 300],
    arrow_size = [150, 100, 50, 10],
    arrow_attr = (color = :blue,),
    edge_color = :red
)
xlims!(-0.5, 1.5); ylims!(-3.5, 0.5)
hidedecorations!(ax)
fig
Example block output

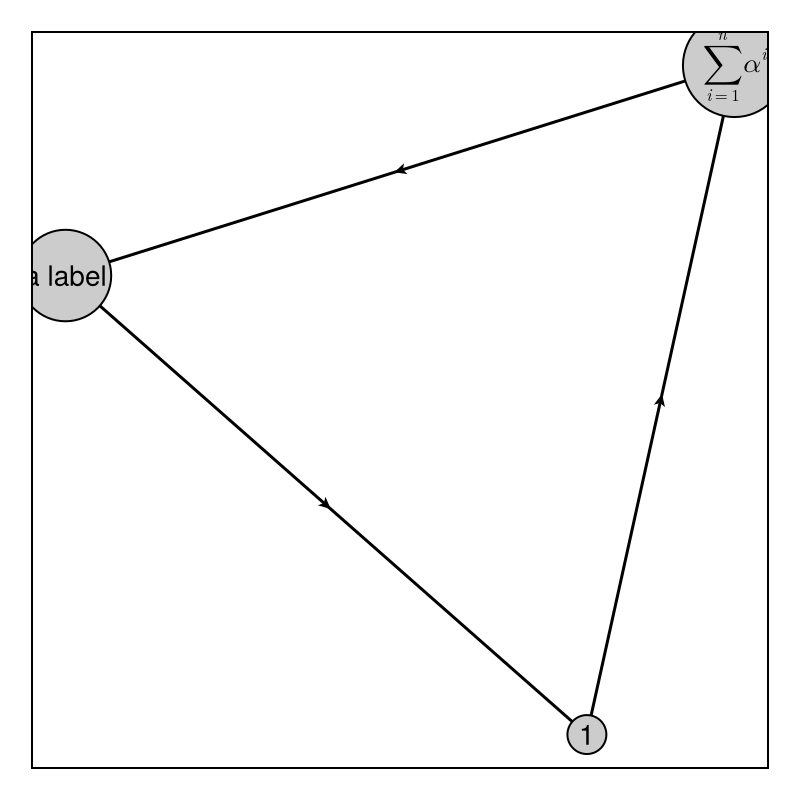

Inner node labels

fig, ax, p = graphplot(cycle_digraph(3), ilabels = [1, L"\sum_{i=1}^n \alpha^i", "a label"], node_marker = Circle)
hidedecorations!(ax)
fig
Example block output

Interact with arrow_shift=:end

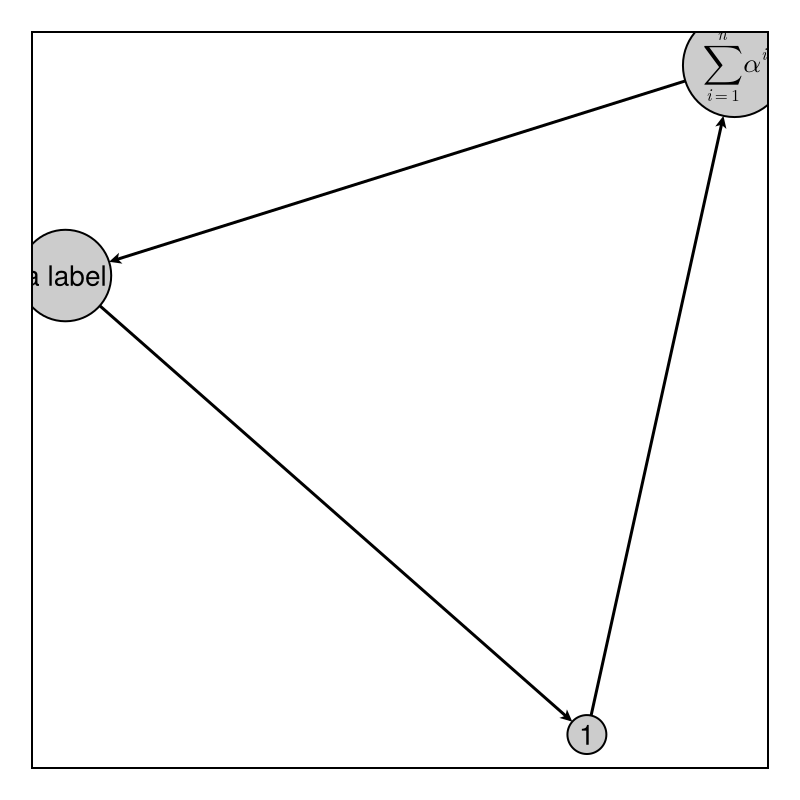

fig, ax, p = graphplot(cycle_digraph(3), ilabels = [1, L"\sum_{i=1}^n \alpha^i", "a label"], node_marker = Circle, arrow_shift = :end)
hidedecorations!(ax)
fig
Example block output

Update observables

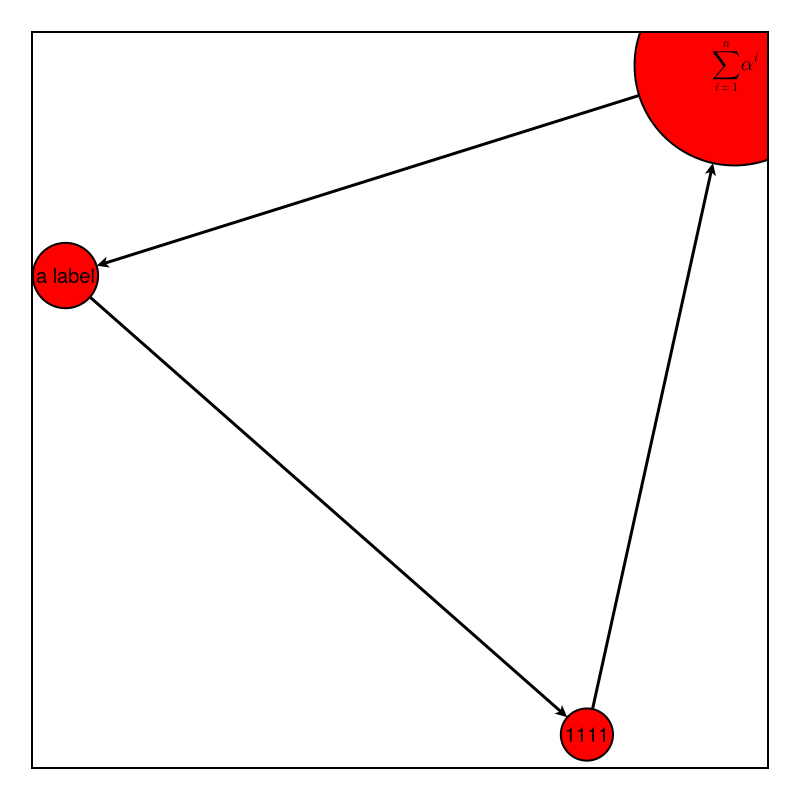

p.node_size[] = DefaultDict(Makie.automatic, Dict{Int, Any}(2 => 100))
p[:ilabels][][1] = "1111"
p[:ilabels][] = p[:ilabels][]
fig

p[:ilabels_fontsize][] = 10
fig

p[:node_color][] = :red
fig
Example block output

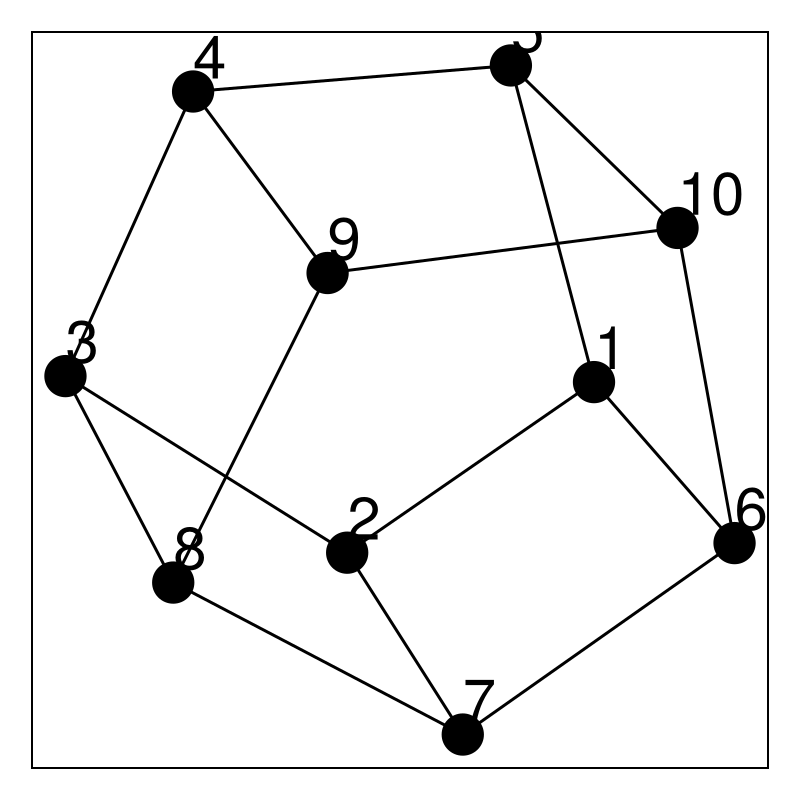

Changes of node and label sizes

gc = circular_ladder_graph(5);
ons = Observable(30);
onf = Observable(30);
fig, ax, p = graphplot(gc; nlabels = repr.(vertices(gc)), node_size = ons, nlabels_fontsize = onf)
hidedecorations!(ax)
fig
Example block output

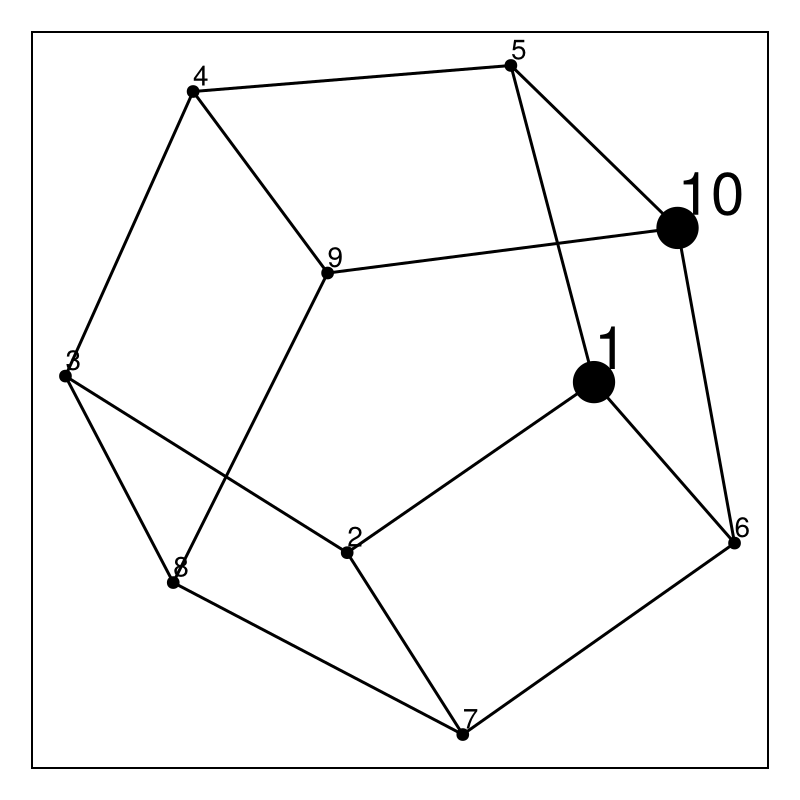

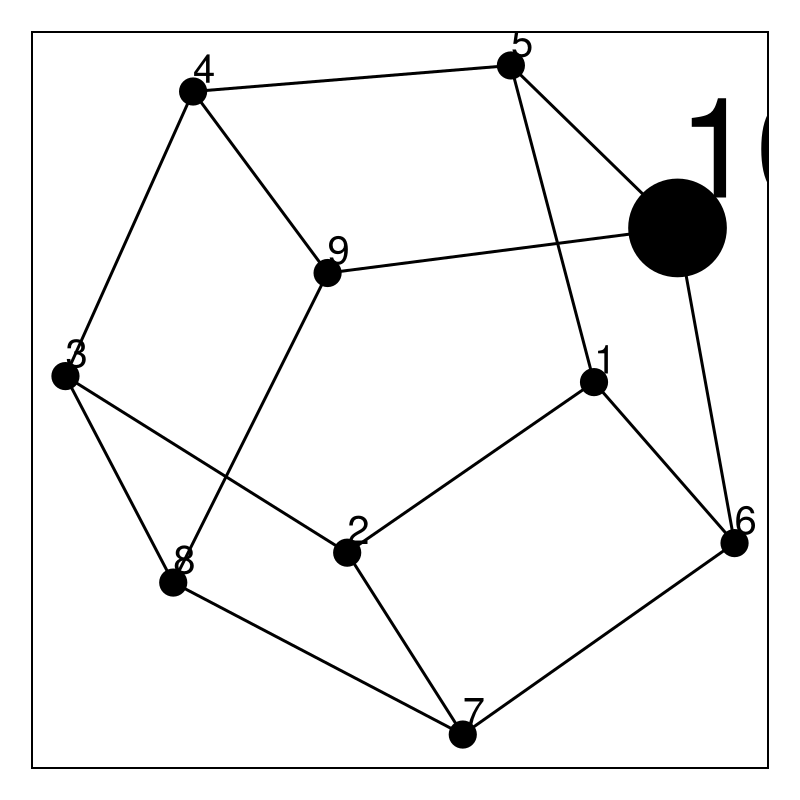

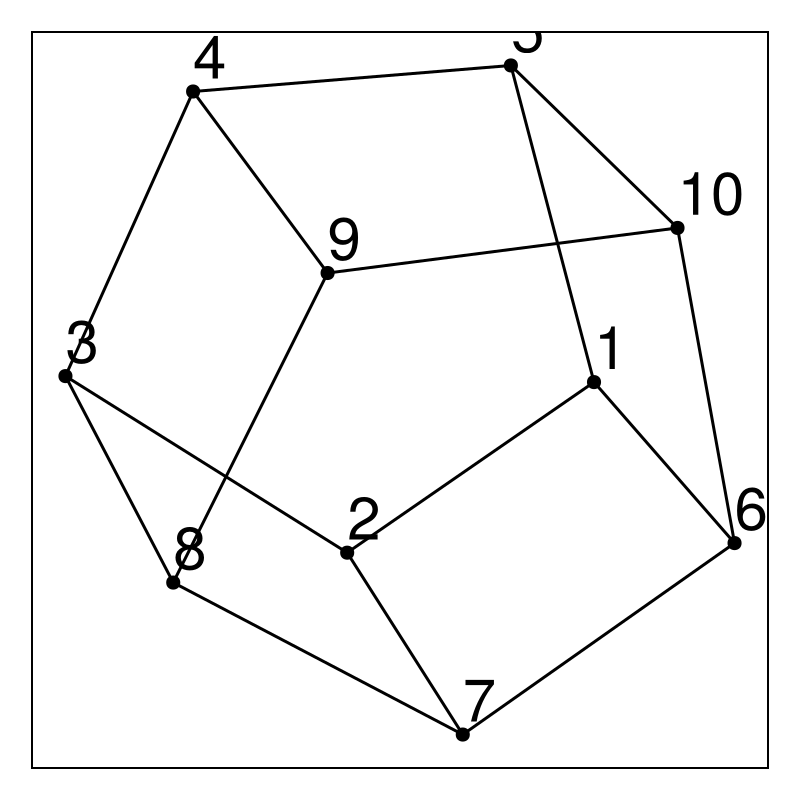

Change node size

ons[] = 10; # check changes
fig
Example block output

Change label font size

onf[] = 10; # check changes
fig
Example block output

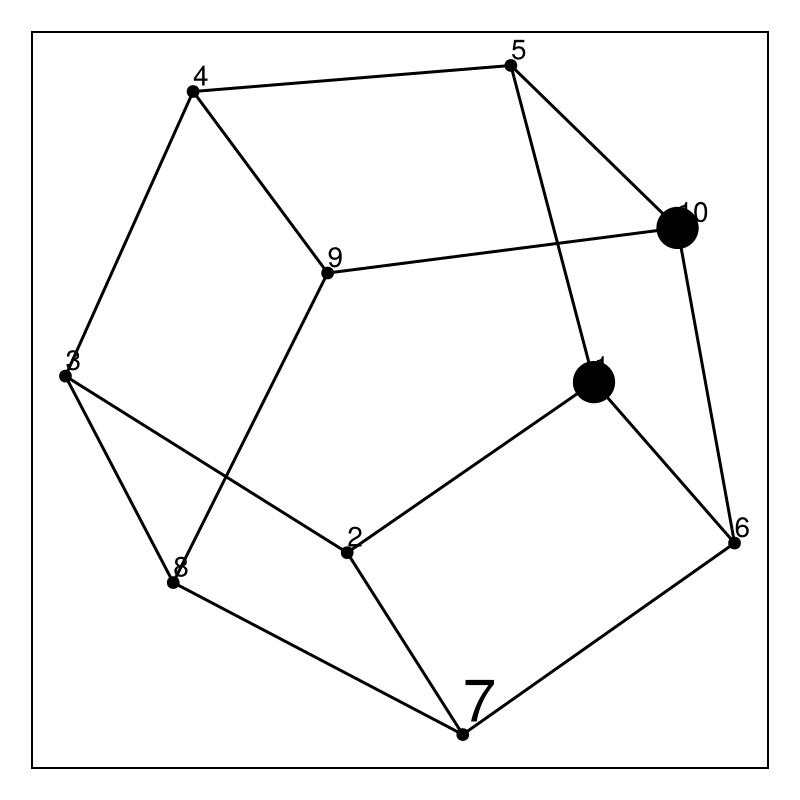

Do the same with a Dict

onf = Observable(Dict(1 => 30, 10 => 30));
ons = Observable(Dict(1 => 30, 10 => 30));
fig, ax, p = graphplot(gc; nlabels = repr.(vertices(gc)), node_size = ons, nlabels_fontsize = onf)
hidedecorations!(ax)
fig
Example block output

Change label font size

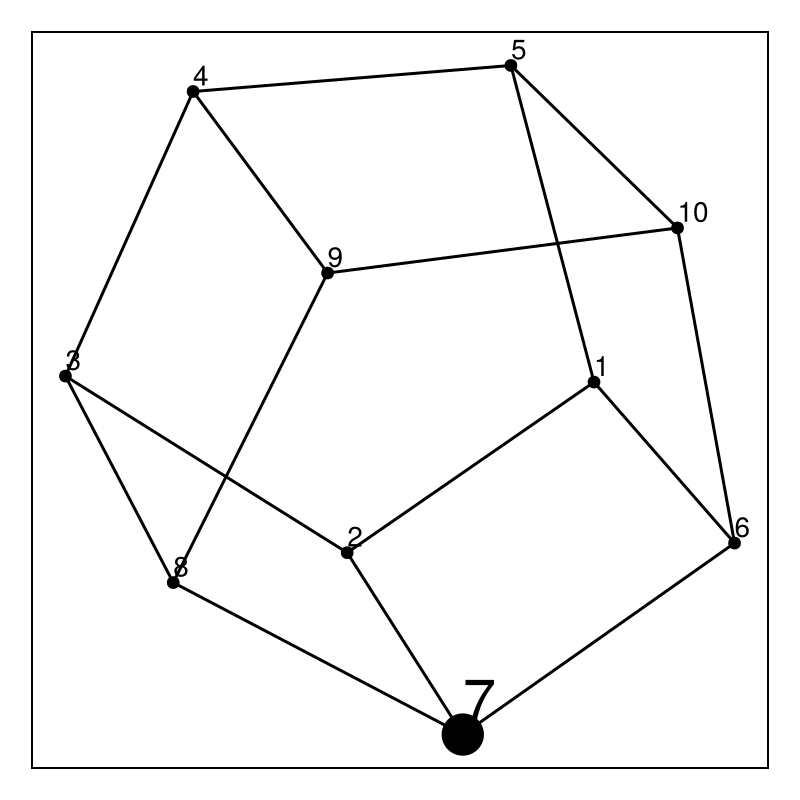

onf[] = Dict(7 => 30); # check changes
fig
Example block output

Change node size

ons[] = Dict(7 => 30); # check changes
fig
Example block output

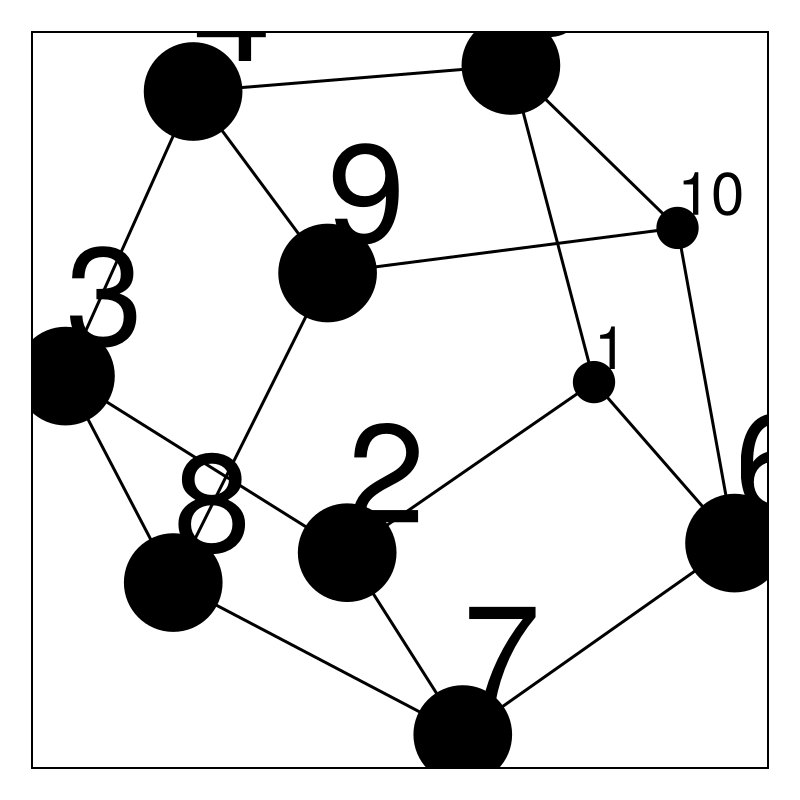

Do the same with a DefaultDict

ons = Observable(DefaultDict(70, 1 => 30, 10 => 30));
onf = Observable(DefaultDict(70, 1 => 30, 10 => 30));
fig, ax, p = graphplot(gc; nlabels = repr.(vertices(gc)), node_size = ons, nlabels_fontsize = onf)
hidedecorations!(ax)
fig
Example block output

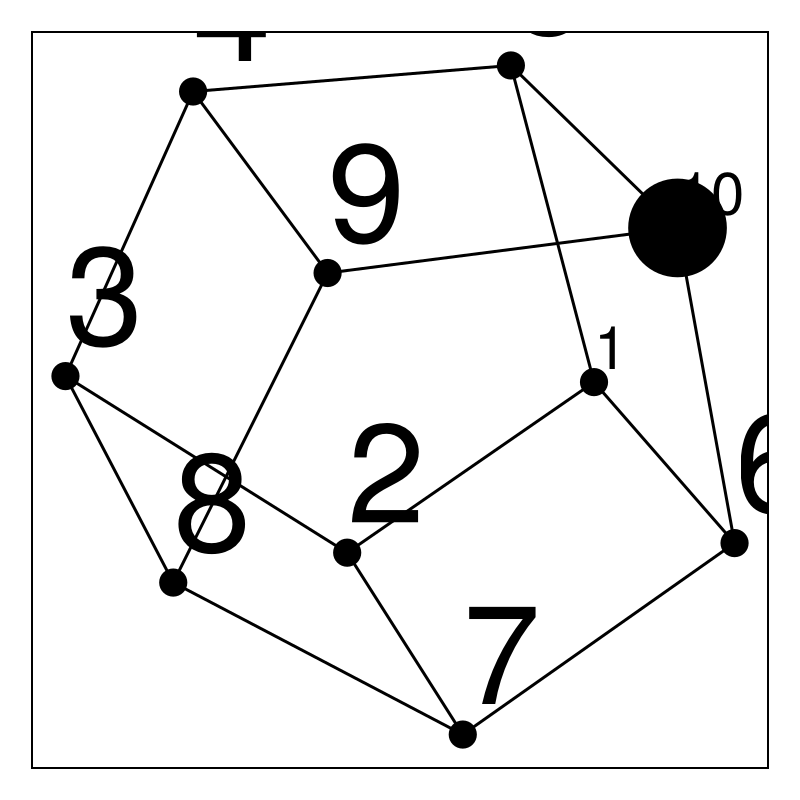

Change node size

ons[] = DefaultDict(20, 10 => 70); # check changes
fig
Example block output

Change label font size

onf[] = DefaultDict(20, 10 => 70); # check changes
fig
Example block output

Dict and DefaultDict

Test out argument functionality with Dict and DefaultDict First with a normal Dict

gc = circular_ladder_graph(5);

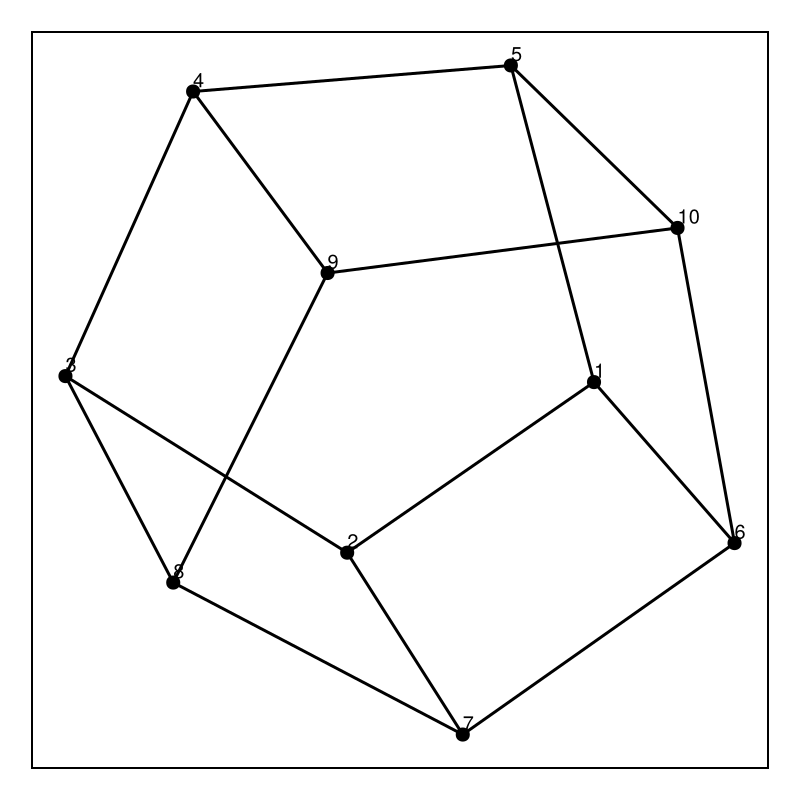

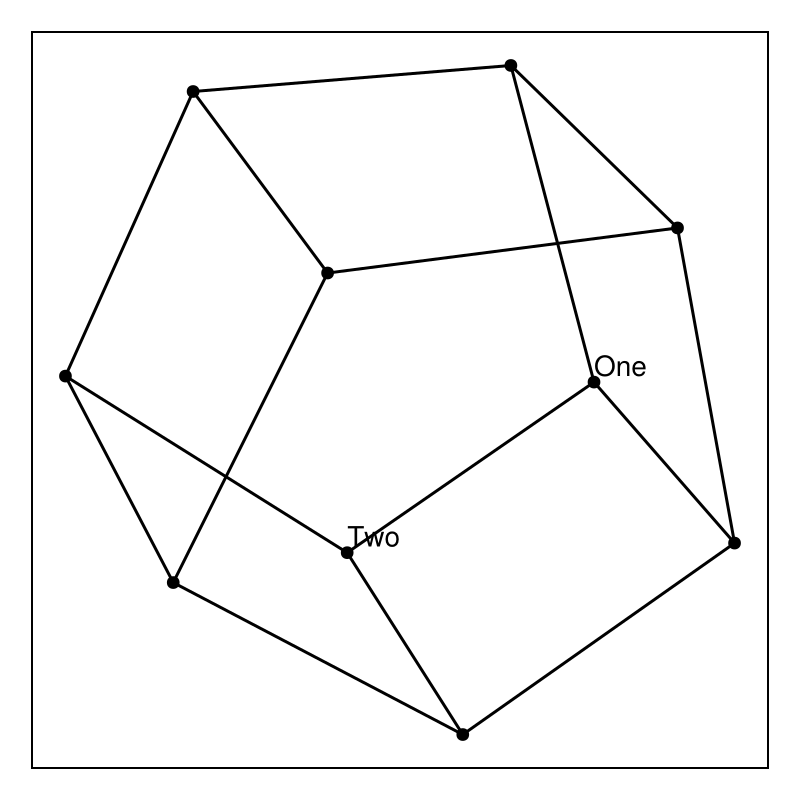

fig, ax, p = graphplot(gc, nlabels = Dict(1 => "One", 2 => "Two"))
hidedecorations!(ax)
fig
Example block output

And also with a DefaultDict

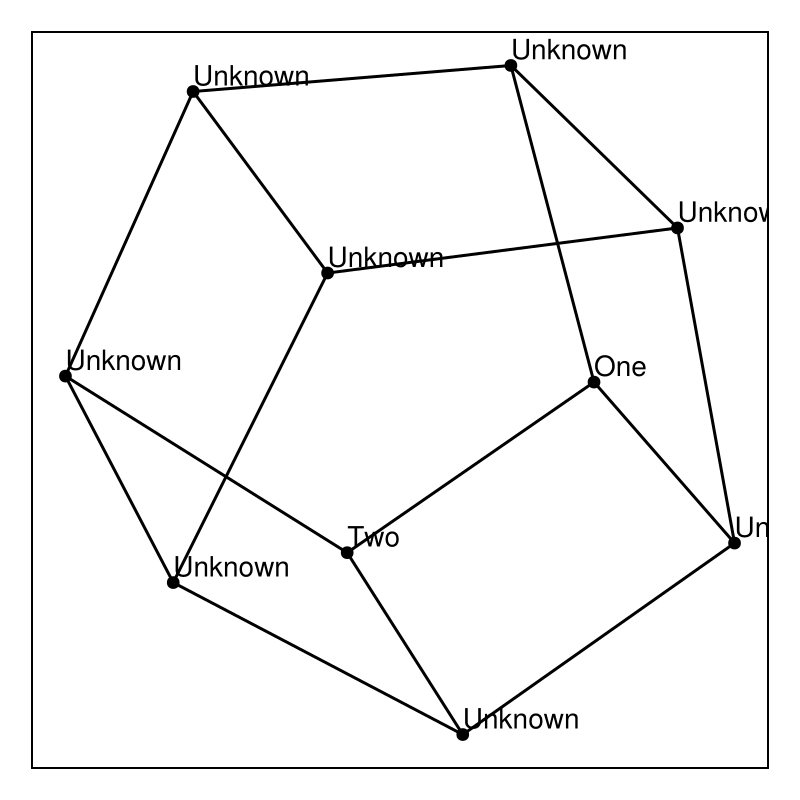

fig, ax, p = graphplot(gc, nlabels = DefaultDict("Unknown", 1 => "One", 2 => "Two"))
hidedecorations!(ax)
fig
Example block output

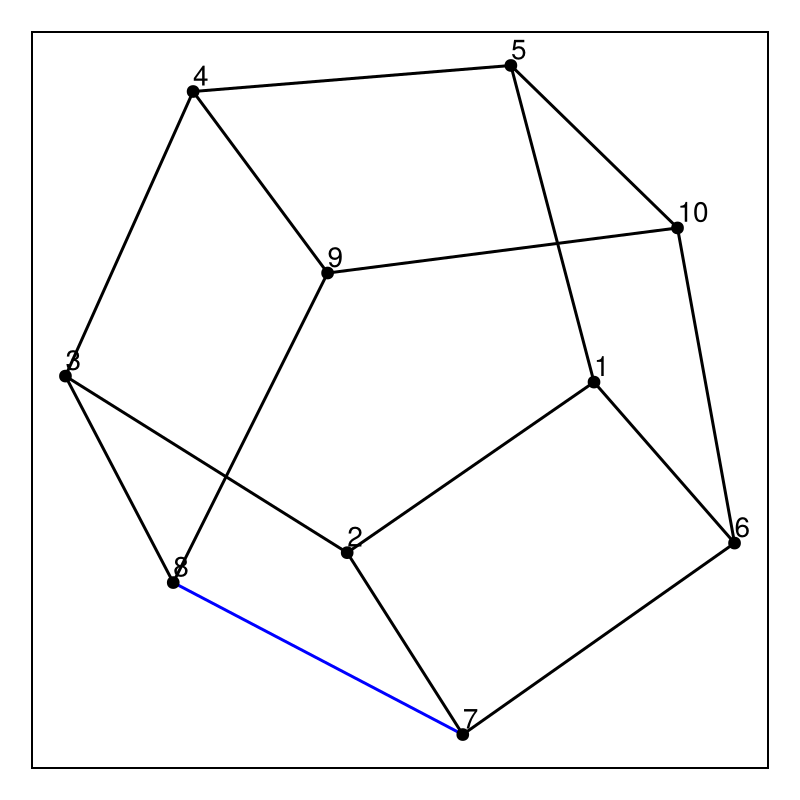

Use Dict{Edge} for edge arguments

fig, ax, p = graphplot(gc, edge_color = Dict(Edge(7, 8) => :blue))
hidedecorations!(ax)
fig
Example block output

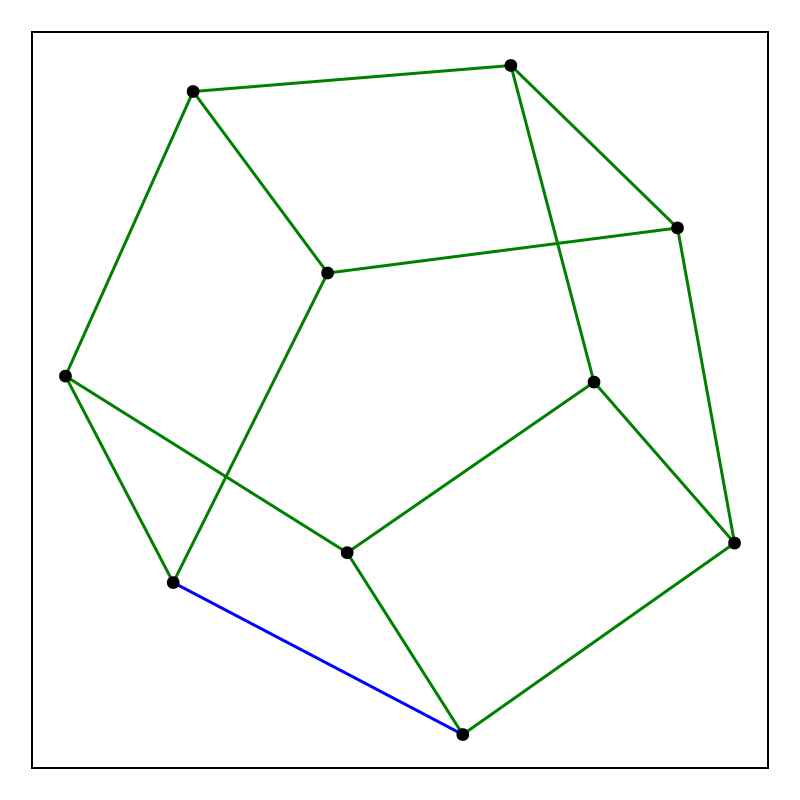

try out also the DefaultDict

fig, ax, p = graphplot(gc, edge_color = DefaultDict(:green, Edge(7, 8) => :blue))
hidedecorations!(ax)
fig
Example block output

Of course you can still use integers labeling

ind = findfirst(==(Edge(7, 8)), collect(edges(gc)))
fig, ax, p = graphplot(gc, edge_color = DefaultDict(:green, ind => :blue))
hidedecorations!(ax)
fig
Example block output

The same can be done with all enumerations of edge arguments

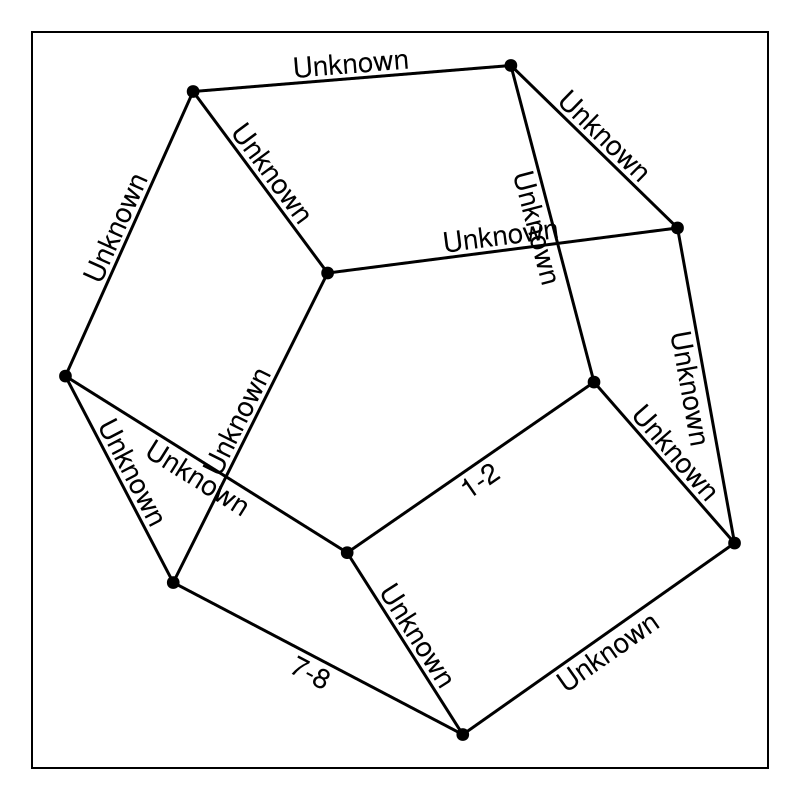

fig, ax, p = graphplot(gc, elabels = DefaultDict("Unknown", Edge(1, 2) => "1-2", Edge(7, 8) => "7-8"))
hidedecorations!(ax)
fig
Example block output

directed and undirected graphs are handled appropriately. For example for directed graphs

gcd = SimpleDiGraph(gc)

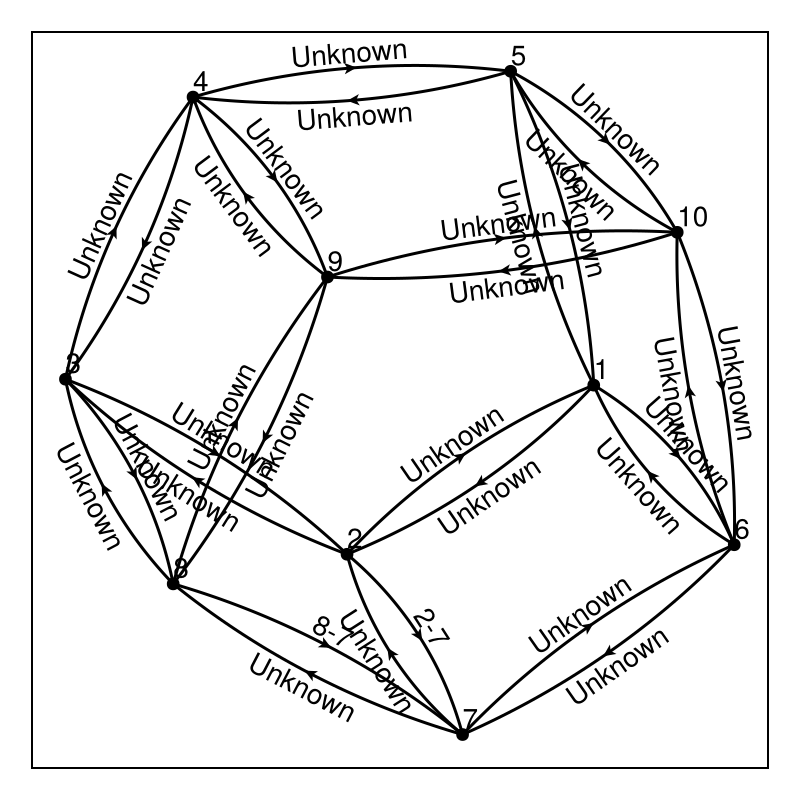

fig, ax, p = graphplot(gcd, elabels = DefaultDict("Unknown", Edge(8, 7) => "8-7", Edge(2, 7) => "2-7"), nlabels = repr.(vertices(gcd)))
hidedecorations!(ax)
fig
Example block output

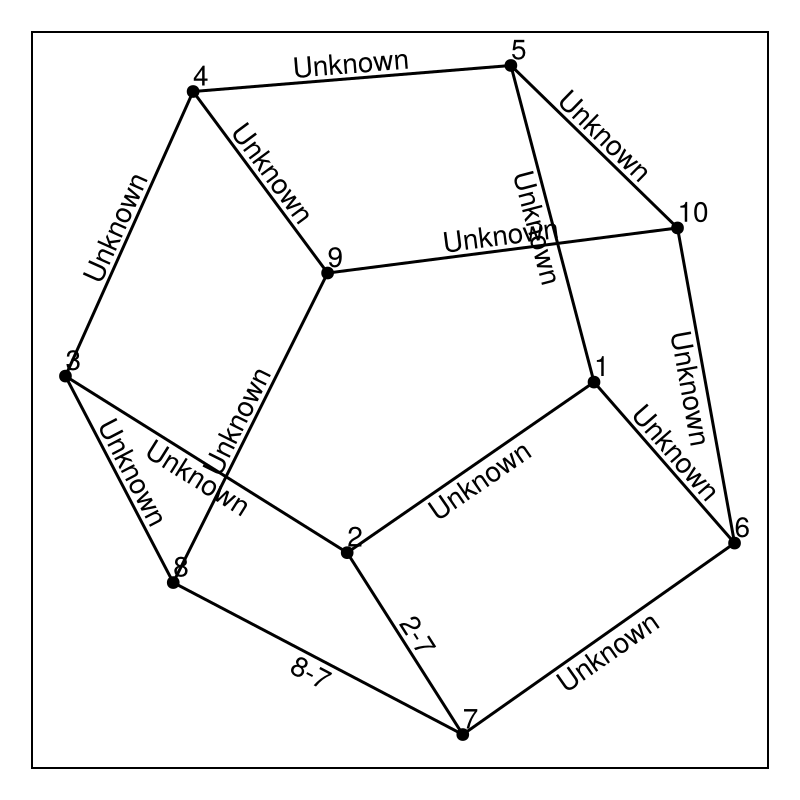

and non-directed graphs

fig, ax, p = graphplot(gc, elabels = DefaultDict("Unknown", Edge(8, 7) => "8-7", Edge(2, 7) => "2-7"), nlabels = repr.(vertices(gc)))
hidedecorations!(ax)
fig
Example block output

Test edge-specific updates

ec = Observable(Dict(Edge(8, 7) => :blue))
fig, ax, p = graphplot(gc, edge_color = ec, nlabels = repr.(vertices(gc)))
hidedecorations!(ax)
fig
Example block output

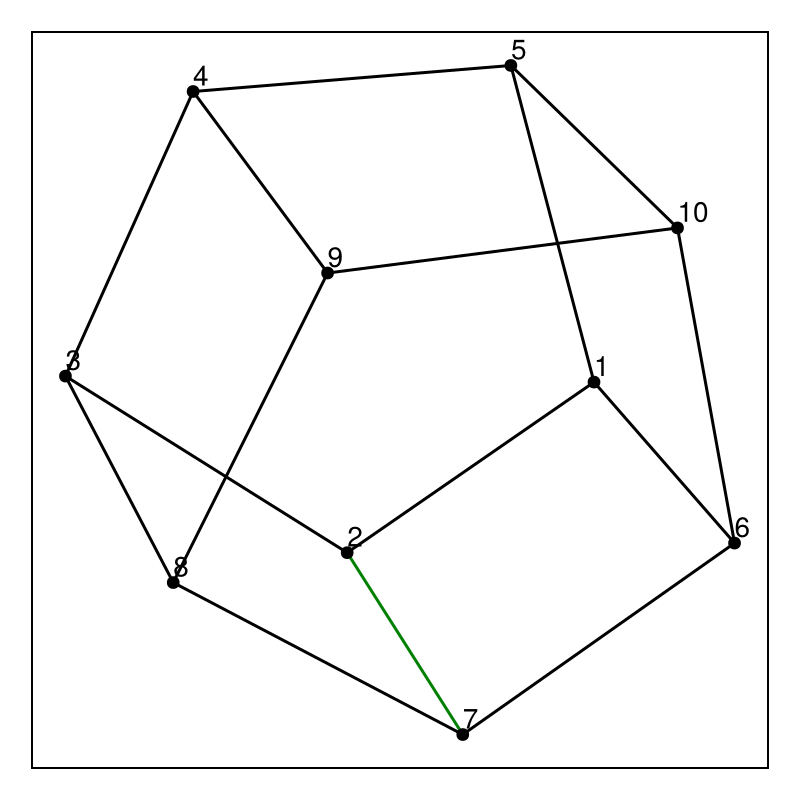

update Observable

ec[] = Dict(Edge(7, 2) => :green)
fig
Example block output

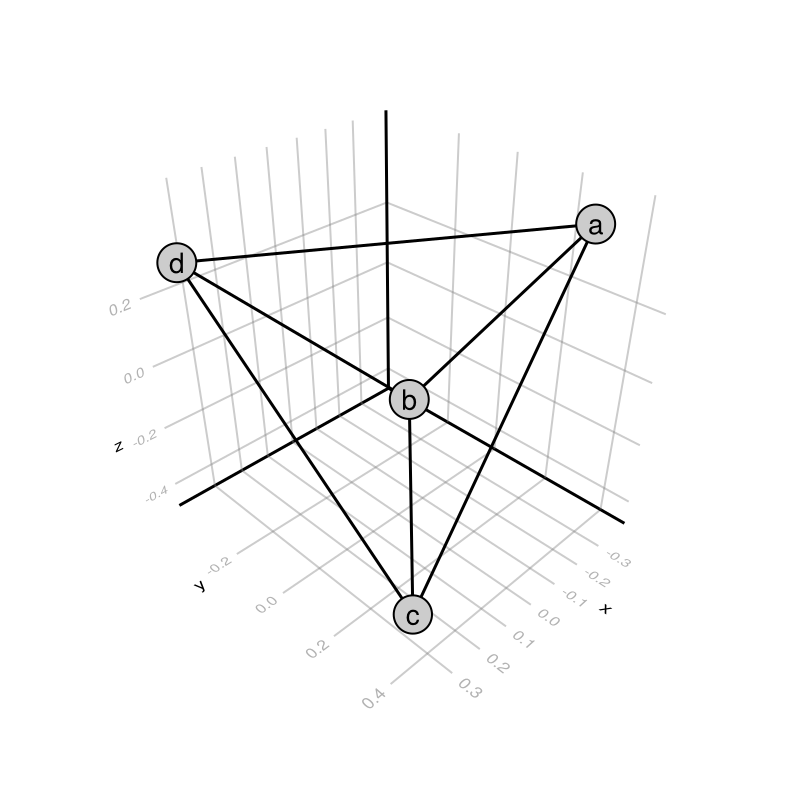

test 3d plots with i-labels

g = complete_graph(4)
fig, ax, p = graphplot(g; ilabels = ["a", "b", "c", "d"], layout = NetworkLayout.Stress(dim = 3))
fig
Example block output

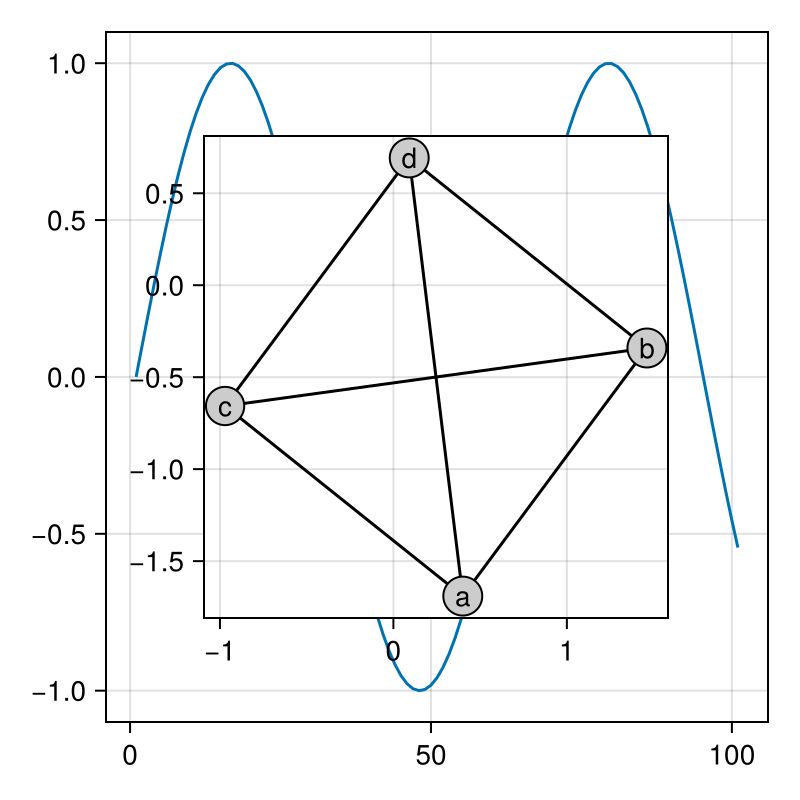

test i-labels visible after translation

g = complete_graph(4)
fig = Figure()
ax = Axis(fig[1, 1])
lines!(ax, sin.(0:0.1:10))
inset_ax = Axis(fig[1, 1]; width = Relative(0.7), height = Relative(0.7), halign = 0.5, valign = 0.5)
translate!(inset_ax.blockscene, 0, 0, 150)

graphplot!(inset_ax, g; ilabels = ["a", "b", "c", "d"])

fig
Example block output

This page was generated using Literate.jl.
